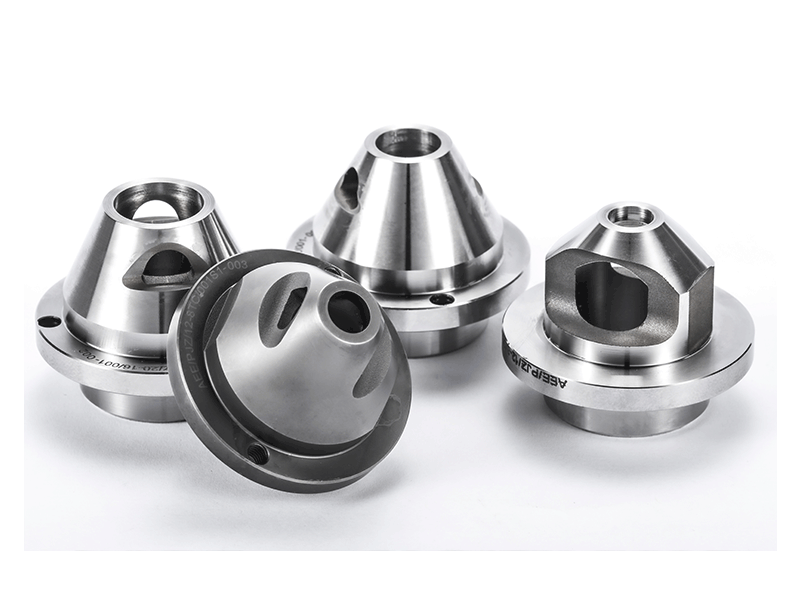

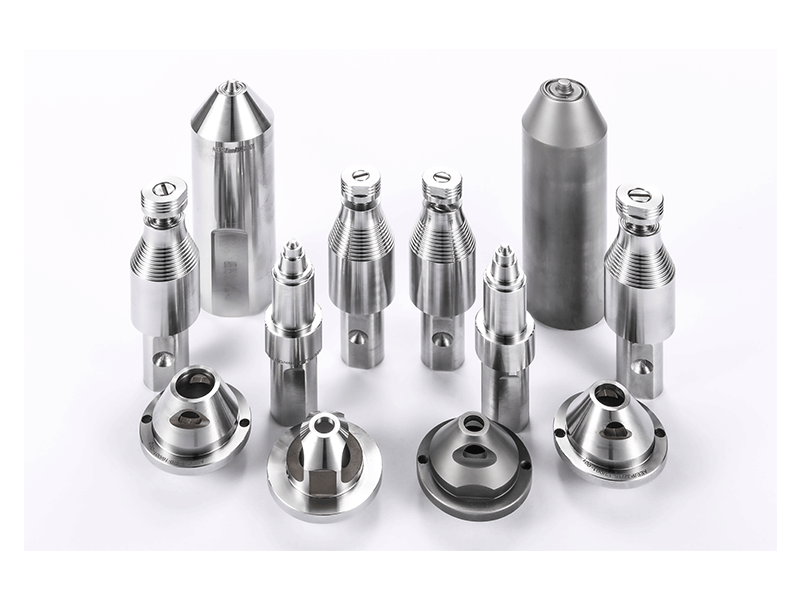

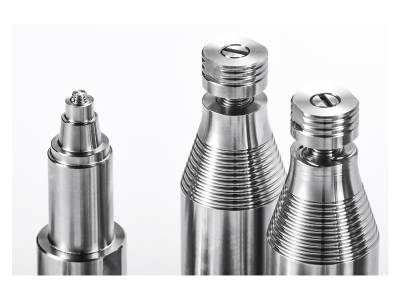

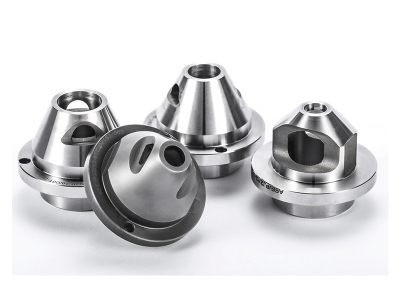

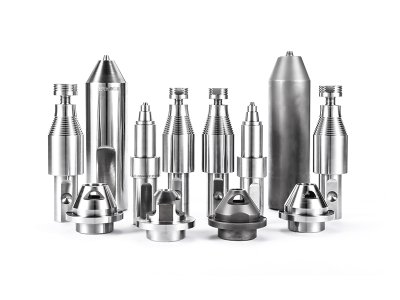

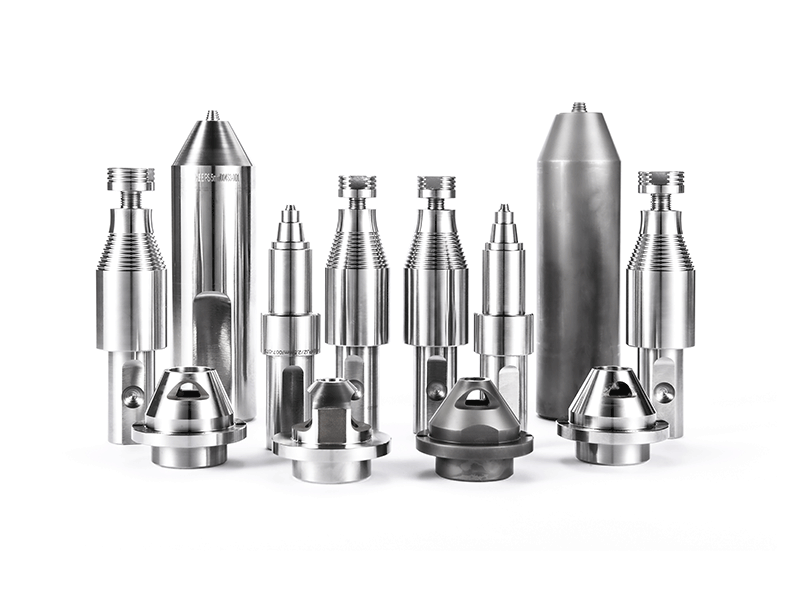

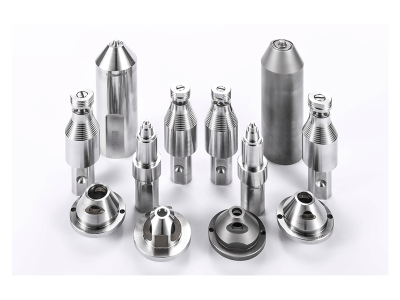

Stationary- shoulder FSW Tool
- Shoulder and pin are separated; pin rotates alone while shoulder slides on the material surface
- Achieves welding at any plate angle (e.g., 90°, 180°, 202°, and more)
- Reduces heat input during welding, resulting in minimal distortion and deformation
- Obtains a uniform thermal gradient in the thickness direction
- Significantly improves weld surface quality — no flash generated during welding
- No thinning of the workpiece after welding
- Suitable for thick plate welding, fillet welds, and low-heat-transfer materials
- Compatible with a wide range of materials: aluminum alloy, magnesium alloy, titanium alloy, copper alloy, and steel
The Stationary Shoulder Friction Stir Welding (SSFSW) Tool is an innovative FSW solution in which the shoulder remains stationary while only the pin rotates during welding. This separation of shoulder and pin allows the tool to weld at any joint angle — including T-type welds, fillet welds, and complex multi-angle configurations. Compared to conventional FSW, SSFSW delivers significantly lower heat input, a more uniform thermal gradient through the material thickness, and superior surface finish with no flash or thinning. It is especially suited for welding aluminum alloy thick plates, magnesium alloys, titanium alloys, and other materials with low heat transfer rates. AEE has developed SSFSW capabilities across a broad range of angles and materials, with applications spanning rail transit, aerospace, and new energy vehicle components.
