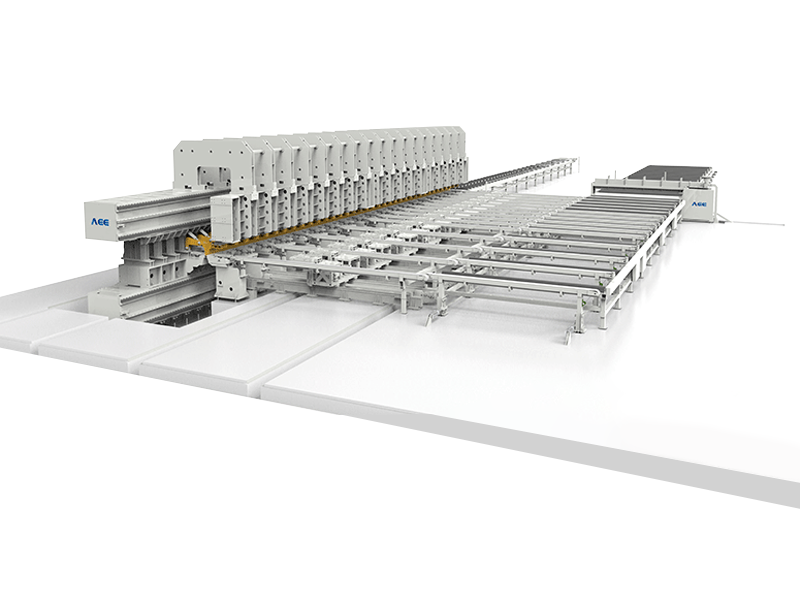

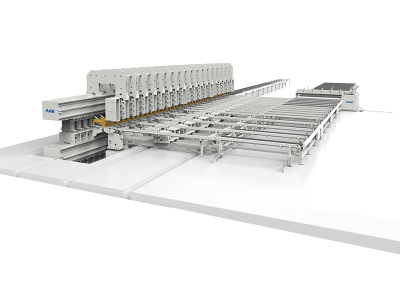

Fully Automatic double-head FSW Production Line
- Fully automatic process including loading, clamping, FSW, and unloading
- With laser tracking, constant pressure control, welding start point positioning, welding quality judgment and other functions
The domestic first fully automatic double-head friction stir welding production line for long and straight aluminum profile welding, which has been exported to a European company, realizes the full automatic operation from automatic welds tracking, feeding, clamping, material discharging and cutting process. It’s suitable for long and straight welding of wide-width long aluminum profiles in rail transit, shipbuilding, etc.
Parameters
- Weld thickness: 1.2mm-16mm
- Max. weld length: 18.5m
- Max. plate width: 3.5m
Functions
- Laser tracking
- Welding pressure display
- Automatic water cooling of the pin tool
- Realize the full automation of feed-in, clamping, weld inspecting before welding, FSW, material discharging, cutting, feed-out, and other machining processes without manual intervention
- Specialized HMI with process database. Automatic welding can be executed by inputting the welding parameters of different products on HMI.
Product Advantages
- Welding depth 1.2–16 mm
- Max. length up to 18,000 mm
- Max. width up to 3,500 mm

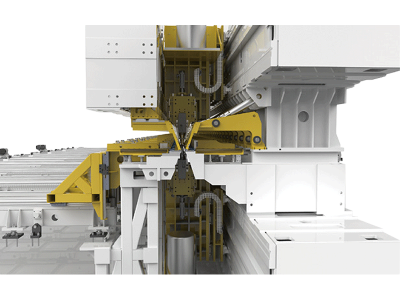

- Simultaneous welding with a double-sided head
- Water-cooling FSW tool
Certifications
- CE EU safety standard
- ISO9001 quality management system
