Automatic FSW Production Line for Aluminum Alloy Wheel

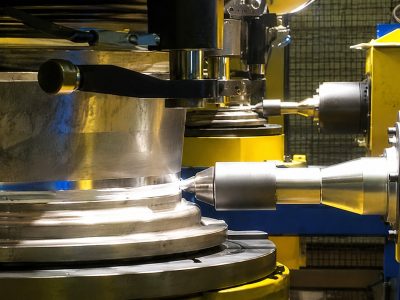

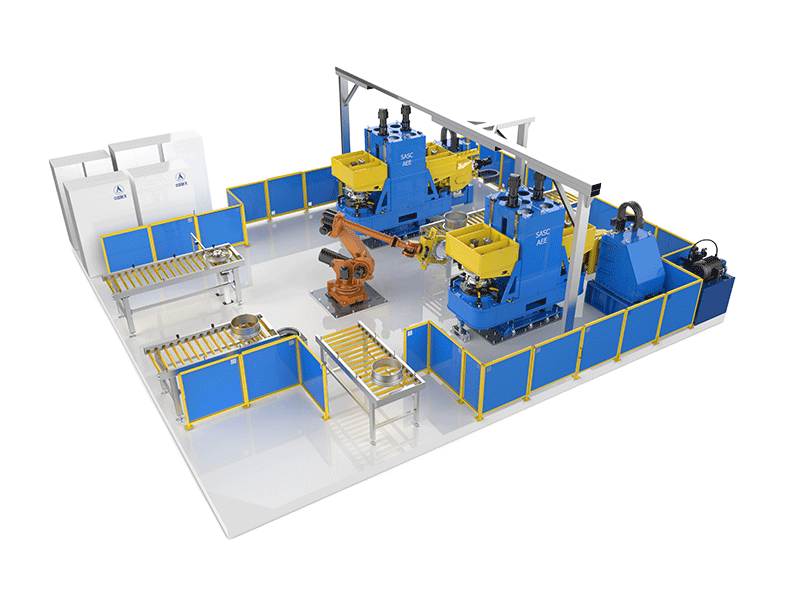

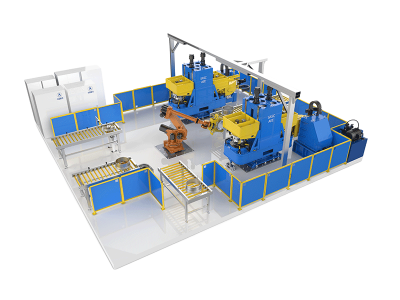

The first domestic automatic FSW production line for Aluminum automobile hubs for European customers is integrated with QR code scanning, robot automatic loading and unloading, criterion automatic identification and positioning, wheel disc and rim clamping, and constant pressure welding. It’s suitable for the circumferential welding of aluminum automobile hub and cylinder components.

Parameters

• Weld thickness: 1.2mm~10mm
• Wheel diameter: 17in-22in
• Max. welding speed: 2.5m/min
• Max. welding rotation speed: 6000r/min

Functions

• The whole line runs unmanned.
• The FSW line has functions of laser tracking, welding pressure display, welding start point positioning, wheel QR code reading, and welding quality judging, which can realize the full automation of feeding, clamping, welding start point positioning, friction stir welding, finished products/waste products out-feeding, etc., without manpower intervening.
• The FSW line has a specialized HMI and process database. Full automation of product welding can be executed only by inputting the welding parameters of different products on HMI products on HMI.

Product Advantages

• Welding depth 1.2–10 mm for wheel diameter 17–22 inches
• Welding speed up to 2500 mm/min and rotating speed up to 6000 rpm
• Cycle time 45 JPH
• Retractable FSW tool without keyhole
• Traceability

Application

• Fully automatic process including loading, clamping, FSW, and unloading.
• With laser tracking, constant pressure control, welding start point positioning, welding quality judgment and other functions.

Certifications

• CE EU safety standard
• ISO9001 quality management system
