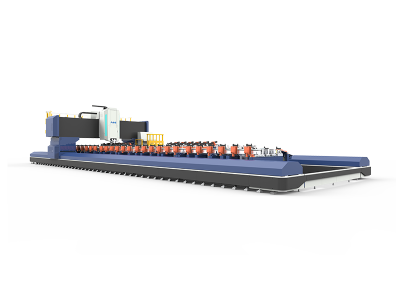

Extra-length Straight Profile FSW Machine
- Stable structure and excellent rigidity.
- An axis automatic detection function is added to the machine, which can realize 1D linear welding in any spatial position, covering the whole series of rail transit body structural parts welding.
- The machine is equipped with a large torque spindle, a good rigidity machine bed, and extensible functions like constant pressure control, automatic laser weld tracking, starting point automatic tool-setting, welding parameters acquisition and extraction.
| Machine Type | AEE FSW 8 × 160/1 | |
| Basic parameters | Working table(width × length) （mm） | 6600 × 1200 |
| Machine length × width × height（mm） | 20000 × 7000 × 3100 | |
| Machine weight（kg） | 75000 | |
| Compressed air request | 0.6Mpa, 1m³/min, φ8 | |
| Welding parameters | Max. welding thickness（mm） | 8 |
| Welding Dimension | 2D | |
| Traverse stroke | X-axis stroke （mm） | 16000 |
| Y-axis stroke （mm） | 4000 | |
| Z-axis stroke（mm） | 500 | |
| C-axis stroke （°） | N × 360 | |
| B-axis stroke(°)(Manual) | 5 | |
| Feed rate | X-axis（m/min） | 10 |
| Y-axis（m/min） | 10 | |
| Z-axis（m/min） | 3 | |
| Axis accuracy | Positioning X/Y/Z （mm） | 0.03 |
| Repeatability X/Y/Z（mm） | 0.03 | |
| Spindle parameters | Spindle Speed（rpm） | 4000 |
| Spindle Torque（Nm） | 112 | |
| Spindle power（kW） | 12 | |
| Force parameters | Max. force in Z-axis（kN） | 30 |
| Max. force in X-axis（kN） | 15 | |
