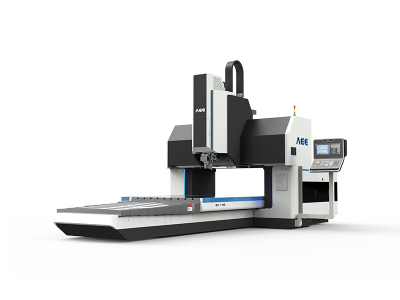

Gantry FSW Machine
- High-quality seams
- Parameter traceability system
- Full security guard
- Customized fixture
- Remote assistance
- Force control system
| Machine type | AEE FSW 16×8/1 | AEE FSW 25×40/1 | AEE FSW/8×25/2 | AEE FSW/8×30/2 | |
| Basic parameters | Working table(width ×length) (mm) | 800×1000 | 2500×4000 | 1800×2500 | 2000×3000 |
| Machine length×width×height (mm) | 2500×2000×2700 | 10000×7000×3200 | 7000×5000×2900 | 9000×6000×3000 | |
| Machine weight(kg) | 10000 | 30000 | 14000 | 18000 | |
| Compressed air request | 0.6Mpa, 1m³/min, φ8 | 0.8Mpa, 1m³/min, φ8 | 0.6Mpa, 1m³/min, φ8 | 0.6Mpa, 1m³/min, φ8 | |
| Welding parameters | Max. welding thickness(mm) | 16 | 25 | 8 | 8 |
| Welding Dimension | 1D | 1D | 2D | 2D | |
| Traverse stroke | X-axis(mm) | 800 | 4000 | 2500 | 3000 |
| Y-axis(mm) | 600 | 2500 | 1700 | 2000 | |
| Z-axis(mm) | 500 | 500 | 500 | 500 | |
| C-axis(°) | / | / | N × 360 | N × 360 | |
| B-axis(°)(Manual) | 5 (Manual) | 5 (Manual) | 5 (Manual) | 5 (Manual) | |
| Feed rate | X-axis(m/min) | 3 | 5 | 10 | 10 |
| Y-axis(m/min) | 3 | 5 | 10 | 10 | |
| Z-axis(m/min) | 2 | 2 | 4 | 4 | |
| C-axis(r/min) | / | / | 10 | 10 | |
| Axis accuracy | Positioning X/Y/Z（mm） | 0.03 | 0.05 | 0.05 | 0.05 |
| Repeatability X/Y/Z（mm） | 0.02 | 0.03 | 0.03 | 0.03 | |
| Spindle parameters | Spindle Speed（rpm） | 2500 | 2000 | 4000 | 4000 |
| Spindle Torque（Nm） | 160 | 257 | 112 | 112 | |
| Spindle power（kW） | 17 | 31 | 12 | 12 | |
| Force parameters | Max. force in Z-axis （kN） | 50 | 60 | 30 | 30 |
| Max. force in X-axis （kN） | 30 | 40 | 20 | 20 | |
