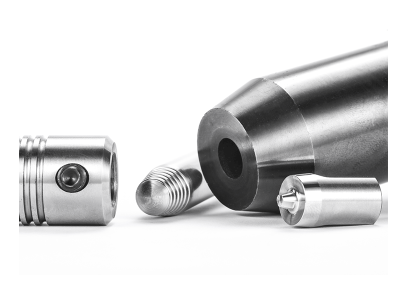

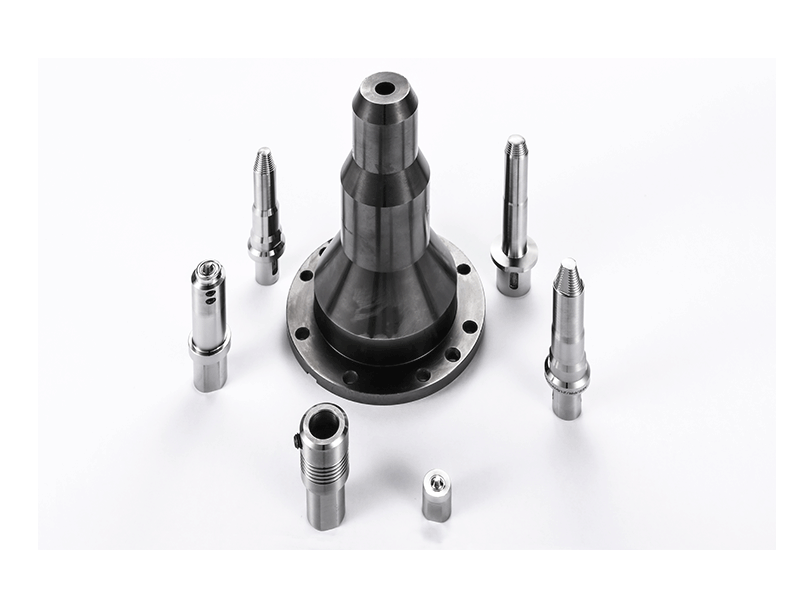

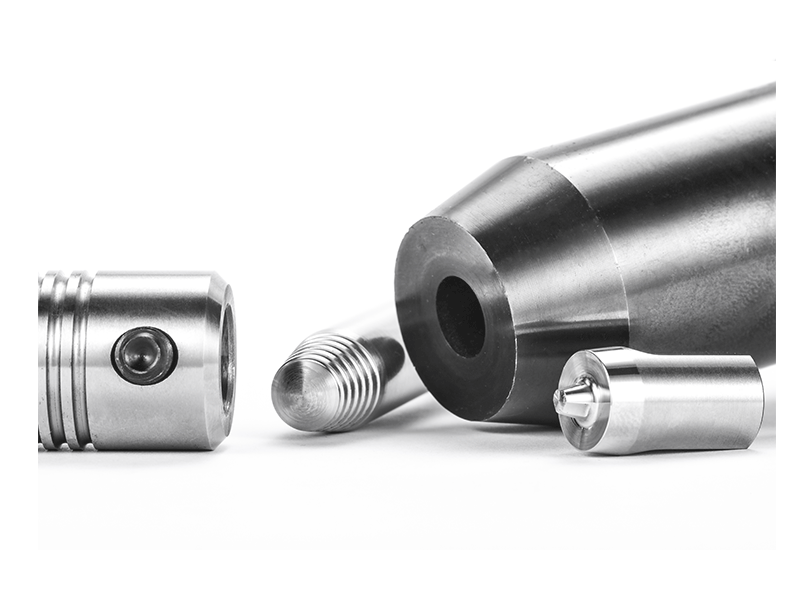

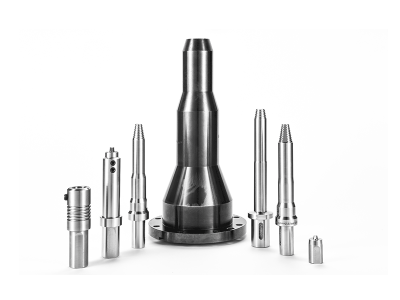

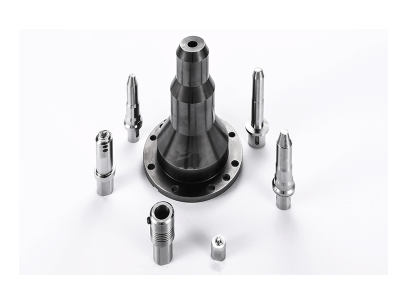

Retractable FSW Tool
- Eliminates the weld keyhole through controlled pin retraction technology.
- Features independently controlled shoulder and pin for precise welding process management.
- Gradually retracts the pin before weld completion to fill and close the exit hole.
- Produces fully sealed, high-integrity welds with no residual keyhole.
- Ideal for cylindrical and closed-loop weld applications requiring complete structural integrity.
The Retractable FSW Tool is specifically designed for retraction friction stir welding applications where weld integrity and keyhole elimination are critical requirements. Unlike conventional FSW tools, the shoulder and pin operate independently, allowing precise control of the pin's vertical movement throughout the welding process.
As welding approaches completion, the pin is gradually retracted into the shoulder under machine control, enabling the plasticized material to fill the exit hole and completely eliminate the weld keyhole. This innovative design produces fully sealed welds with enhanced structural integrity and superior surface quality.
The Retractable FSW Tool is particularly suitable for cylindrical, circumferential, and closed-loop welding applications where traditional friction stir welding methods may leave a keyhole defect. It is widely used in industries requiring high-reliability welded structures, including aerospace, rail transportation, pressure vessels, and new energy manufacturing.
By eliminating the keyhole and maintaining continuous material flow, the Retractable FSW Tool helps improve product performance, reduce post-processing requirements, and ensure the highest welding quality standards.
