AEE provides customer with optional features FSW tool

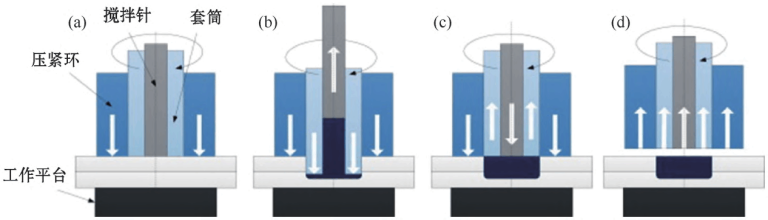

To meet the diverse requirements of modern manufacturing, AEE provides a range of optional features for its Friction Stir Welding (FSW) equipment. These advanced functions enhance process control, welding quality, production efficiency, and equipment reliability.

Here are nine optional features that can help customers optimize their FSW operations.

1. Tool Life Monitoring System

The Tool Life Monitoring System automatically measures the length of conventional FSW tools and continuously tracks tool wear throughout the welding process.

Key features include:

• Automatic tool length measurement
• Wear detection based on preset tool length parameters
• Automatic alarm and welding shutdown when wear reaches the specified threshold
• Over-stroke protection function to prevent accidental operation during tool setting
• Dedicated CNC interface window for tool data display and parameter settings

This feature helps reduce unexpected tool failures and ensures consistent weld quality.

2. Workpiece Counting System

The Workpiece Counting System records both tool life data and production quantities.

Benefits include:

• Automatic tracking of processed workpieces
• Recording of program execution frequency
• Display of production statistics within a selected period
• Improved production management and maintenance planning

This function provides valuable data for production monitoring and operational analysis.

3. Welding Demonstration Function

The Welding Demonstration Function simplifies product commissioning and process setup.

Key capabilities:

• Supports welding path demonstration during product debugging
• Automatically records the welding trajectory after demonstration
• Stores welding paths for future production runs
• Automatically adjusts welding trajectories for identical products

This feature significantly reduces programming time and improves production efficiency.

4. Dissimilar Material Welding Capability

AEE’s advanced FSW technology supports the welding of dissimilar materials, enabling manufacturers to join different metal combinations with high strength and reliability.

Applications include:

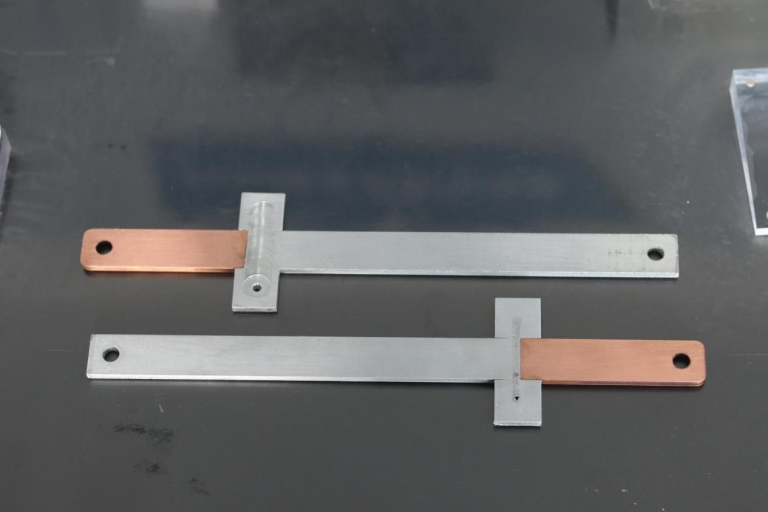

• Aluminum-to-copper welding
• Aluminum-to-steel welding
• Multi-material lightweight structures
• New energy and transportation industries

This capability expands design flexibility and material selection options.

5. Welding Force Control System

The Welding Force Control System enables precise pressure monitoring and control throughout the friction stir welding process.

Main functions include:

• Real-time measurement of forging force at the stirring head
• Continuous force feedback to the control system
• Automatic comparison and calculation of welding force values
• Dynamic adjustment of Z-axis plunge depth
• Closed-loop process control for improved welding consistency

The system helps achieve stable weld quality and process repeatability.

6. Welding Traceability System

The Welding Traceability System supports digital manufacturing and smart factory integration.

Features include:

• Real-time welding data collection
• Data transmission to upper-level control systems
• MES (Manufacturing Execution System) integration
• Production process traceability
• Quality management support

This function enables comprehensive production data management and quality tracking.

7. Hydraulic Station and Tooling Interface

AEE offers an optional hydraulic station and tooling interface designed for automated fixture control.

Specifications include:

• Four-circuit horizontal hydraulic station
• Maximum operating pressure of 5 MPa
• Electromagnetic valve configuration
• Eight four-circuit hydraulic oil pipes
• 4-meter pipe length for flexible installation
• X-axis drag chain protection
• Complete relay, circuit breaker, and electrical control components

This system provides reliable hydraulic support for complex welding fixtures.

8. Gas Detection and Rapid Cooling System

Gas Detection System

The gas detection system helps ensure proper fixture operation by:

• Monitoring pneumatic tooling air supply pressure
• Verifying whether pressure meets operational requirements
• Detecting air tightness between tooling and workpieces
• Confirming secure workpiece clamping conditions

Rapid Cooling System

The rapid cooling system connects to an external air source and provides cooling airflow below 5°C.

Benefits include:

• Reduced tooling temperature
• Faster workpiece cooling
• Improved production efficiency
• Enhanced process stability

Together, these systems contribute to safer and more reliable welding operations.

9. Protective Cover System

The Protective Cover System safeguards critical machine components from external contamination and damage.

Protected components include:

• Ball screws
• Lead screws
• Guide rods
• Columns
• Main spindle assemblies
• Linear guide rails
• Hard guide rails
• Transmission racks

The protective covers help extend machine service life and reduce maintenance requirements.

Enhance Your FSW Production with AEE

AEE is committed to providing advanced Friction Stir Welding solutions that improve productivity, precision, and operational efficiency. With a wide range of optional features available, customers can configure their FSW systems to meet specific production requirements and application challenges.
